This controller will power any common-positive 12V RGB lighting products. It is the newest version, and the most reliable, low-cost controller on the market! It is waterproof, for extreme duarability, even in the toughest automotive conditions.

Included:

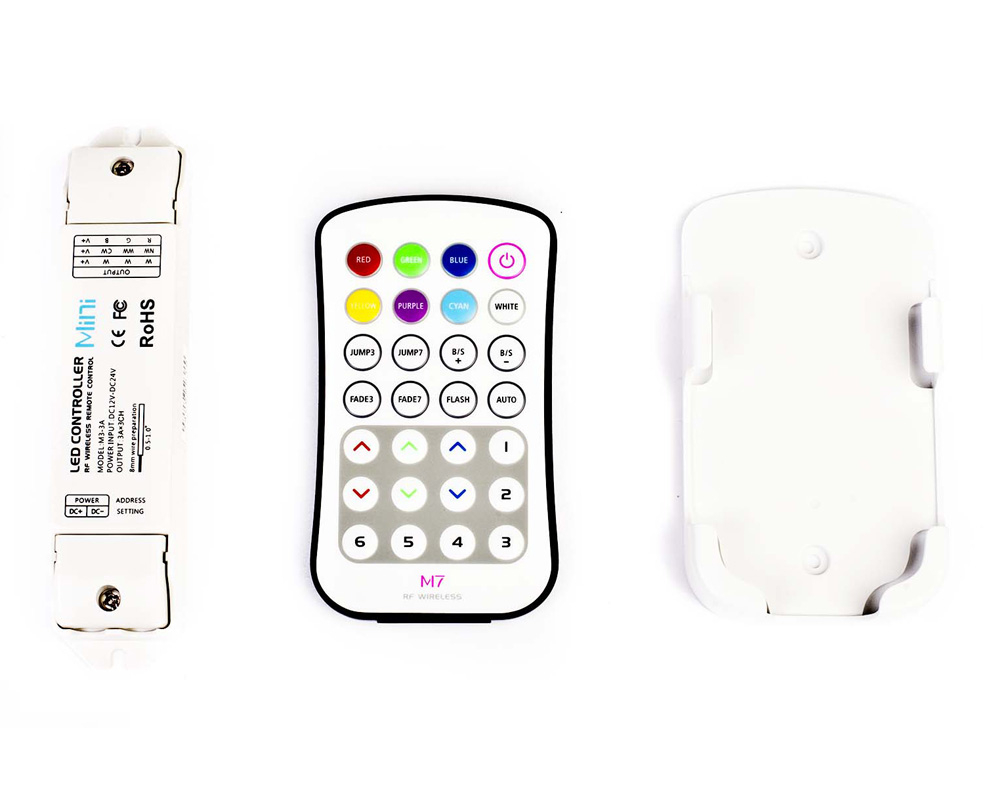

• One waterproof RF RGB controller
• One input power wire
• Four output wires
• One remote control
• One CR 2332 3V battery

This controller has four standard 4-pin RGB outputs, configured in +BRG order, which is compatible with any Diode Dynamics RGB LED products. It is simple to reconfigure if necessary. The power input plug should be wired to 12 volts.

The remote is a radio-frequency remote, so it can be controlled from anywhere up to 50 feet away from the controller module. It will not interfere with other radio frequencies. It uses one CR 2332 3V battery.
Specifications

• Battery: CR 2332 3V (included)
• Operating Voltage: 9-16V
• Operating Temperature: -40C to 85C (-40F to 185F)
• Connector(s): JST Inline Connectors
• Intrusion Ratings: IP65 Dustproof
• Weight (lb): 0.2563
